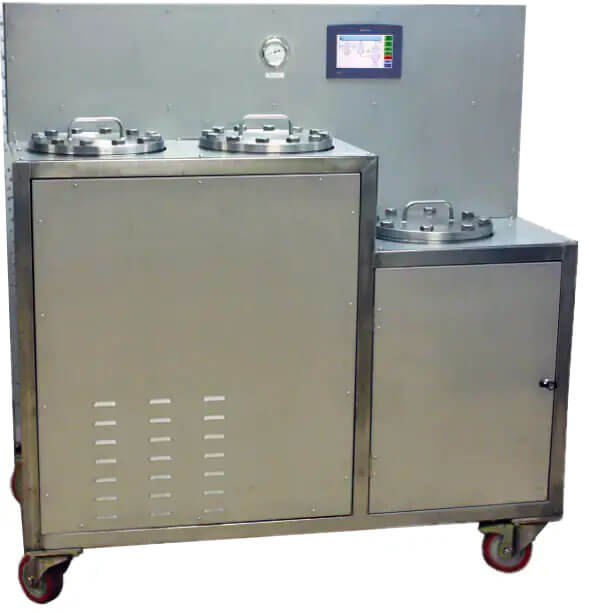

20L LPE Extraction System
  • Volume: 2x10L vessel holds up to 3-6 lb of dry material
  • Pressure: Maximum operating pressure 16 bar
  • Temperature: Max 60C/140F
  • Material: 304 stainless steel
  • Vessel: interior is polished to food grade level
  • Closure: ASME flange, both ends
  • Sealing: Flanges with TFE flat seals
  • Sensors: Pt100 sensors
  • Volume: 10 liters (5.13 gallons)
  • Safety: spring loaded safety relief valve
  • Orientation: Horizontal
  • Pressure: Maximum Pressure 10 bar
  • Maximum Solvent Content: 32 Kg
  • Separator: Jacketed separator/collection vessel
  • Volume: 10 Liter
  • Pressure: Maximum pressure 10 bar
  • Temperature: max 60C (140F)
  • Materials: 304 stainless steel
  • Closures: FDA sanitary style bolted
  • Sealing: Flanges with PTFE flat seals
  • Safety: Spring loaded safety release valve
  • Flow path: Continuous/batch gravitational path
  • Construction: Refrigeration unit
  • Materials: All 304 stainless steel
  • Cooling/Heating: R134a refrigerant
  • Refrigeration: heat pumping
  • Temperature range: -10C to 50C (14F to 158F)
  • Maximum refrigerant content: 2 kg
  • Height: 1550 mm
  • Length: 1420 mm
  • Width: 780 mm
  • Material: 304 stainless steel
  • Weight: 550 kg
  • Voltage: 230V
  • Power: 4kW
  • Plug: 4-way 50A outlet
  • Functions: Fully automatic programmable Logic Controller (PLC) touch screen interface with first level safety functionality and user programmable pressure, temperature, and time.
  • Safety: Pressure transducers monitor system pressure and shut down system to prevent accidental over-pressurization/safety valves.

View Product Specification Sheet
